X Model
Lifts 1,500 kg, reaches 5 m. For 80–120 HP tractors; buckets in 170 and 190 cm.
- Capacity
- max. 1,500 kg
- Lift height
- 500 cm
Rear Loader Buckets

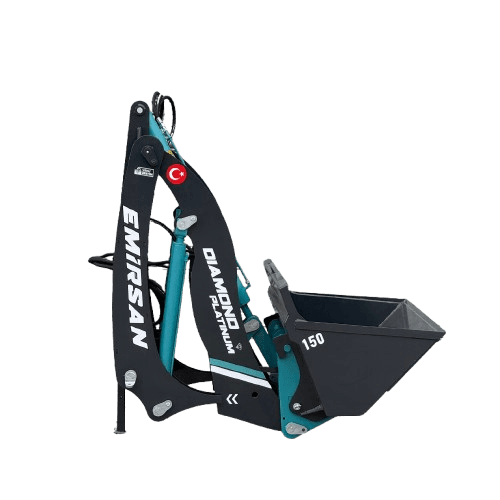

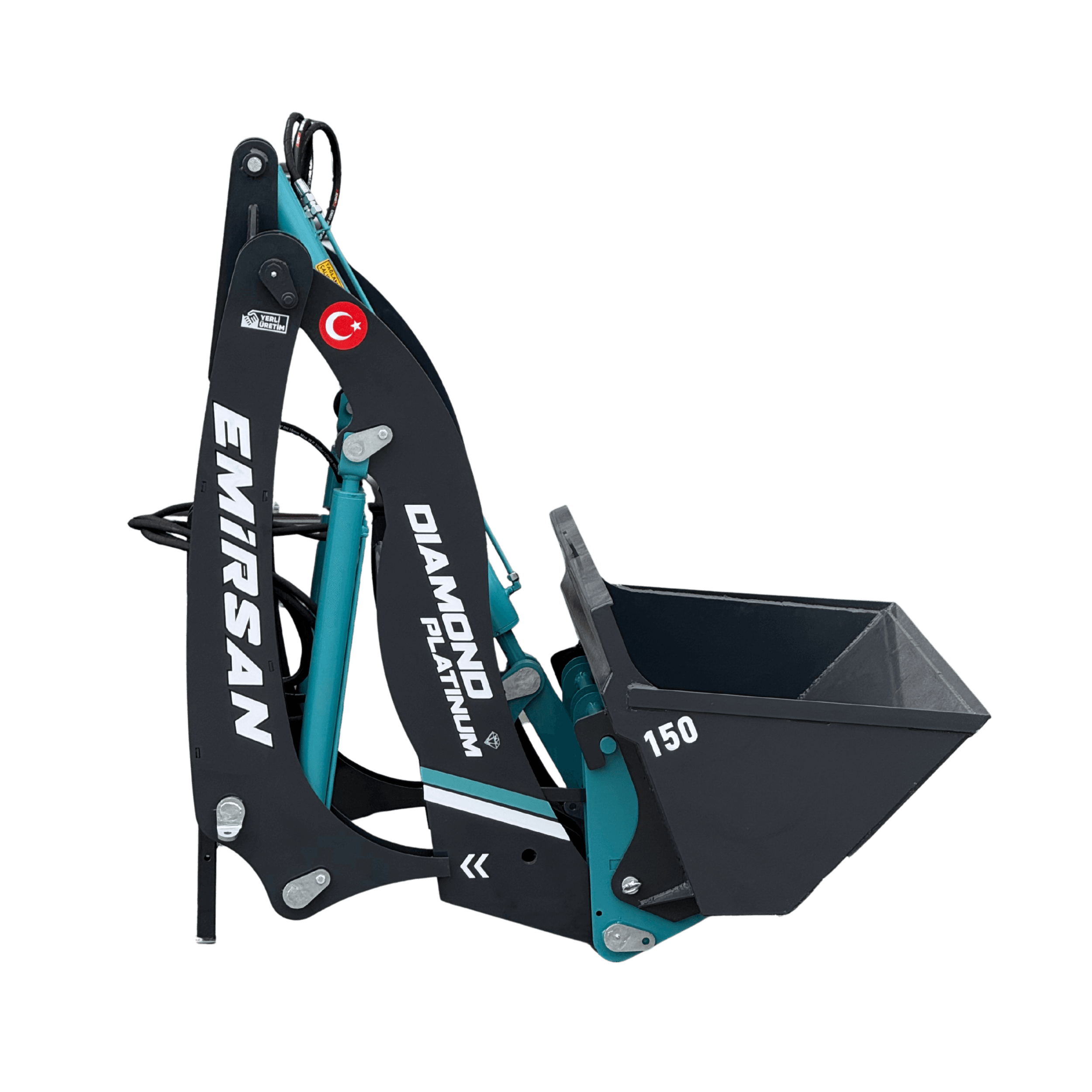

Diamond Platinum
Lifts 1,200 kg, reaches 3.85 m. For 55–100 HP tractors; buckets in 120, 150, 170 and 190 cm.
The Diamond Platinum starts with the frame: 20 mm wide-surface front frame, 12 mm + 12 mm joints at the connection points and 6 mm + 6 mm in the lower sections. Thick where the load gathers, not needlessly heavy where it does not. The cylinders are designed specifically for this model. The hydraulic system returns excess oil pressure to the tractor and balances the flow, which both extends hose life and keeps arm movement free of jolts. The quick-detach console turns an attachment change into a job of minutes.
Key Features
- 20 mm wide-surface front frame thickness
- 12 mm + 12 mm joints at the connection sections
- 6 mm + 6 mm joints in the lower sections
- Custom-designed cylinders
- Hydraulic system that returns excess oil pressure to the tractor and balances the flow
- Wide attachment range, quickly interchangeable via the quick-detach coupler
Related Products
SpaceX
Lifts 1,000 kg, reaches 4.80 m. For 70–100 HP tractors; buckets in 120, 150, 170 and 190 cm.
- Capacity
- max. 1,000 kg
- Lift height
- 480 cm
FREQUENTLY ASKED
What People Ask About This Model
How much does it lift?
The Diamond Platinum lifts up to 1,200 kg and reaches 385 cm. It weighs 530–575 kg itself and works with tractors between 55 and 100 HP. Buckets are made in 120, 150, 170 and 190 cm widths.
How thick is the frame?
The front frame is 20 mm with a wide surface. Connection sections use 12 mm + 12 mm joints and the lower sections 6 mm + 6 mm. Thick where the load gathers, sized to avoid dead weight everywhere else.
What is different about the hydraulics?
It returns excess oil pressure to the tractor and balances the flow, so the hoses are not held under constant high pressure and the arm moves without jolting. The cylinders are designed specifically for this model.
What does it cost?
The price depends on the tractor-specific quick-detach console, the bucket width you choose (120–190 cm) and which attachments you want — which is why we do not post a single figure. Call +90 544 747 28 27 or send your tractor details on WhatsApp and we will quote you the same day.
